FIG8 Self-Supporting Cable

Application:
This cable is ideal for in long distance and interoffice communication in strong current zone, as well as power transmission system.  The built in suspension stranded rope provides high tensile strength, enabling the cable suited for large span installation, resulting in time and installation cost savings. The suspension wire, being an integral part of the cable, is easily available for gripping, fastening and pulling. This cable is featured of its lightness, low dispersion and high tensile strength.
Description:

The cable consists of 5 to 36 fiber containing tubes or fillers stranded in up to 3 layers around a central strength member and bound under a PE jacket. Each jelly filled tube contains 4 -12 fibers. Solid or stranded steel coated with polyethylene is usually used as central strength member. Fiber glass reinforced plastics (FRP) will be used as central strength member if non metallic construction is required. Either aramid yarn or fiber glass is wound around the tube to provide physical protection and tensile strength. Water blocking materials are filled in the interstice of the cable core, core wrapping layer/water blocking tape. The cable can be jacketed with either PE, PVC or LSZH though PE is the preferred option for water protection purpose. For direct burial, steel wire armour or corrugated steel tape armour is applied with an optional inner jacket of either PVC or PE. An optional Aluminium moisture tape can be incorporated under the jacket for water blocking and shielding purpose. Cable cores are connected with the suspension wires by PE sheath to form a figure “8” shape. An optional ripcord is located under the jacket to facilitate jacket removal.

Construction:

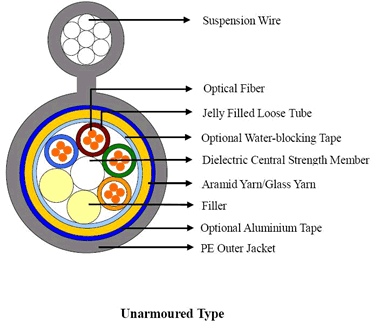

Fig8 Self-supporting Unarmoured Cable

Physical Properties:

Fiber Count

Nominal Weight (kg/km)

Nominal Weight (lb/kft)

Nominal Outer Diameter
(mm)

Nominal Outer Diameter
(in)

Maximum Pulling/Tensile Load

Installation
(N/lb)

Operating
(N/lb)

2-24

303.0

203.36

9.1*21.5

0.36*0.85

2670/600

890/200

36-72

332.0

222.82

11.1*23.5

0.44*0.93

2670/600

890/200

96-144

417.0

279.87

15.9*28.3

0.63*1.12

2670/600

890/200



Construction:

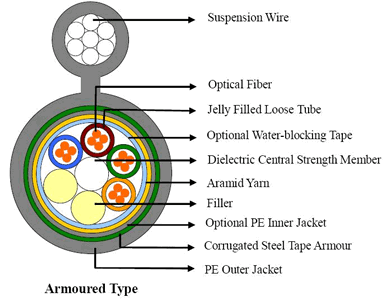

FIG8 SELF-SUPPORTING ARMOURED

Physical Properties:

Fiber Count

Nominal Weight (kg/km)

Nominal Weight
(lb/kft)

Nominal Outer Diameter
(mm)

Nominal Outer Diameter
(in)

Maximum Pulling/Tensile Load

Installation
(N/lb)

Operating
(N/lb)

2-24

303.0

203.36

9.1*21.5

0.36*0.85

2670/600

890/200

36-72

332.0

222.82

11.1*23.5

0.44*0.93

2670/600

890/200

96-144

417.0

279.87

15.9*28.3

0.63*1.12

2670/600

890/200

Mechanical Properties:

Minimum Bending Radius:
Under installation:     20×OD
During operation:     10×OD for unarmoured cables;
20×OD for armoured cables.
Temperature Range:
Operating Temperature Range: -40℃(-40℉) to +70℃(+158℉)
Storage Temperature Range: -50℃(-58℉) to +70℃(+158℉)

Maximum Compressive Load: 4000N for unarmoured cables;
                                        6000N for armoured cables
Repeated Impact:               4.4 N.m (J)
Twist (Torsion):                 180×10 times, 125×OD
Cyclic Flexing:                  25 cycles for armoured cables.;
      100 cycles for unarmoured cables.
Crush Resistance:            220N/cm (125lb/in)

Fiber Compliance:

Temperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool Bend

IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11

Safety Compliance:

General Purpose Grade
Flammability Test: OFN (UL1581)
Riser Grade
Flammability Test: OFNR/FT4 (UL1666)
Plenum Grade
Flammability Test: OFNP/FT6 (UL 910)
FRPVC Grade
Flammability Test: IEC60332-1
LSZH Grade

Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2

LSFROH Grade

Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A

FR Grade
Fire Resistance Test: IEC 60331 / BS 6387 CWZ



Standard Compliance:
Telcordia GR-20                                     RUS 7 CFR 1755.900 (REA PE-90)                         ICEA S 87-640

Features:

  • Suitable for self supporting aerial, duct and direct burial installation
  • Tear away messenger simplifies grounding
  • Ripcord allows easy cable entry and jacket removal
  • Compatible with existing Fig 8 hardware
  • Flexible buffer tube simplifies routing and splicing.
  • Loose tube jelly filled for superior fiber protection
  • UV or moisture resistant for outdoor application
